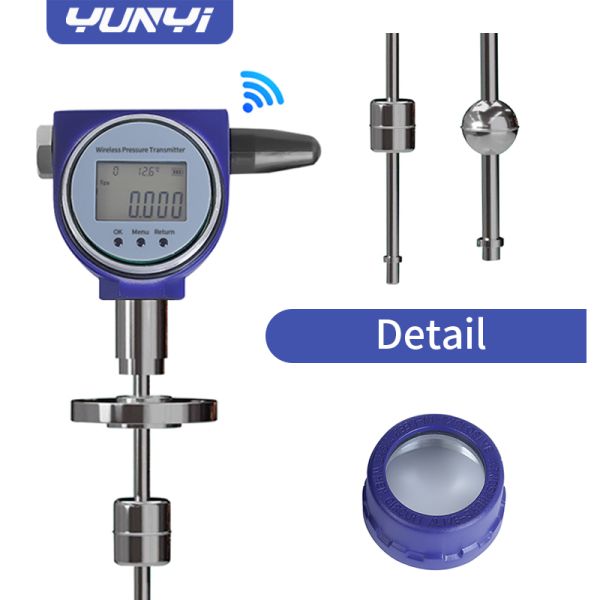

Yunyi wirelwss Temperature Compensated Magnetostrictive Level Transmitter

Name: Yunyi wirelwss Temperature Compensated Magnetostrictive Level Transmitter
Brand: YUNYI
Price: 140 USD

Quality Yunyi wirelwss Temperature Compensated Magnetostrictive Level Transmitter for sale

Brand Name : YUNYI

Model Number : YLMW400

Certification : CE, ROHS, ISO

Place of Origin : China

MOQ : 1sets

Price : 140-180usd

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100Sets per month

Delivery Time : 5-8 working days

Packaging Details : Box/wooden box

product name : Wireless 4G/Lora Magnetic Water Level transmitter

Model : YLMW400

wirless medthod : 4G/Rora+gata way

Output : 4-20mA (default) RS485, Hart protocol

Measuring Range : 150mm-1600mm

Material : ICr18Ni9Ti, ABS, PP-R(Wrok temperature 0.6MPa)

Accurancy : ± 0.1mm

Working temperature : -40℃~+350℃

Protection : IP65

Contact Now

Yunyi wirelwss Temperature Compensated Magnetostrictive Level Transmitter

Wireless Magnetostrictive Level Gauge utilizes magnetostrictive waveguide technology combined with industrial IoT architecture (LoRaWAN/NB-IoT/4G) to achieve high-precision simultaneous measurement of three parameters: liquid level, interface, and temperature.

By disturbing the waveguide tube with a magnetic float to generate torsional stress waves, it captures liquid level changes with 0.05% FS-level accuracy, completely eliminating mechanical transmission errors.

The dual innovations of battery power supply and wireless transmission provide a maintenance-free, metering-grade monitoring solution for high-end applications such as petrochemicals and LNG.

Specification:

Model	YLMW400
Medium	Compatible liquid with the material
Medium pressure	-0.05 ~ 10MPa
Medium viscosity	0.5 ~ 2.0g/cm3
Resistance	adjustable between 0～24s
Maximum load	50×(power supply voltage-9)Ω
Dead zone	upper dead zone 50mm; bottom dead zone 50mm
Power influence	Iess than 0.005%/V of output range

Eliminate the three major maintenance challenges:
✦ Risk of falls from climbing ✦ Difficulty reading levels at night or in harsh environments ✦ Delayed response to abnormal conditions
